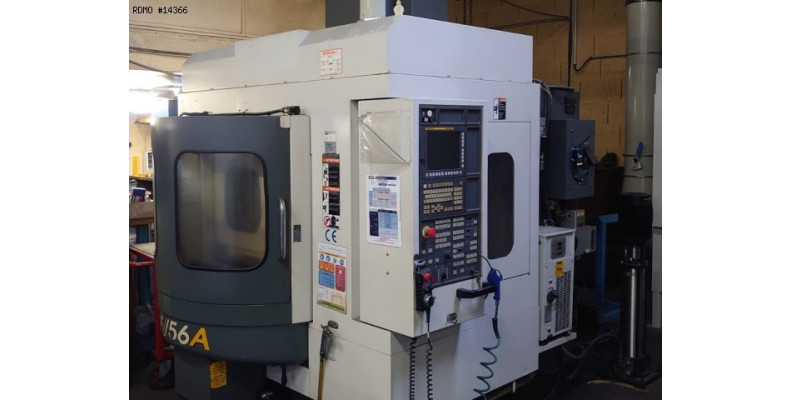

Hersteller: Ycm
Modell: FV56A APC
Jahr: 2014
Seriennummer: 0857
Hersteller: Ycm
Modell: FV56A APC
Jahr: 2014
Seriennummer: 0857

Technische Daten & Zubehöre

Technische Daten
- Anzahl der Achsen : 3 FRÄSSPINDEL - Werkzeugaufnahme : BT40 - Spindelantriebleistung : 15 [kW] - Spindeldrehzahl : 10.000 [Upm] LINEAR ACHSEN - Verfahrweg X/Y/Z-Achsen : 560 x 410 x 450 [mm] - Eilganggeschwindigkeit (X/Y/Z) : 36 / 36 / 24 [m/min] - Vorschubgeschwindigkeit (X/Y/Z) : 1 - 10.000 [mm/min] WERKZEUGWECHSLER - Typ Werkzeugwechsler : Ladearm - Anzahl der Werkzeuge im Magazin : 20 PALETTENWECHSLER - Paletten Größe : 560 x 410 [mm] - Anzahl der Paletten : 2 - Max. Tisch Beladung : 120 [kg] - Abstand von Tisch zu Spindelnase : 25 - 475 [mm] ELEKTRISCHE VERSORGUNG - Gesamtantrieb : 30 [kVA] GEWICHT UND ABMESSUNGEN - Platzbedarf : 3.095 x 2.500 [mm] - Maschinenhöhe : 2.470 [mm] - Maschinengewicht : 3850 [kg] MASCHINENSTUNDEN - Stunden unter Strom : 18.386 [bst.] - Spindelstunden : 4.699 [bst.]
Zubehöre

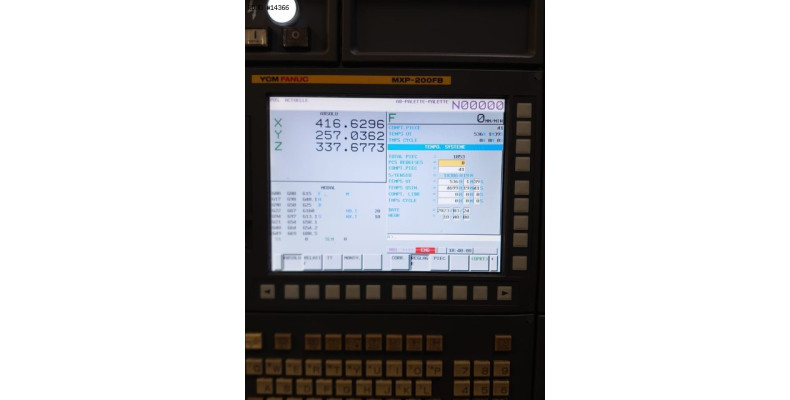

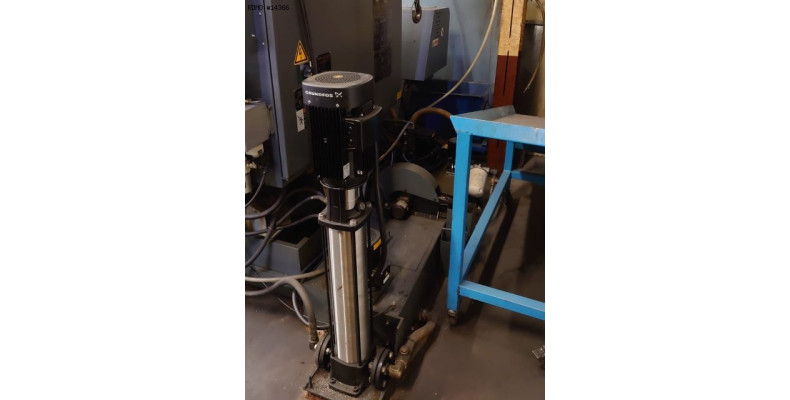

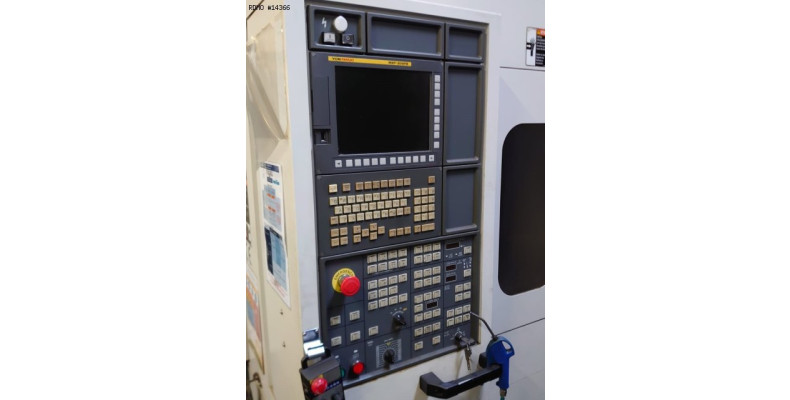

- Steuerung : Fanuc MXP-200FB - Elektronisches Handrad - 3-farbige Statuslampe - KÜHLMITTELTANK * mit Hochdruckpumpe : 20 [bars] - Spindelkühlung - Späneförderer - Werkzeug Meßtastereinrichtung : Renishaw
Technische Spezifikationen zum Herunterladen

Beschreibung

Gebraucht Werkzeugmaschinen zum Verkauf
